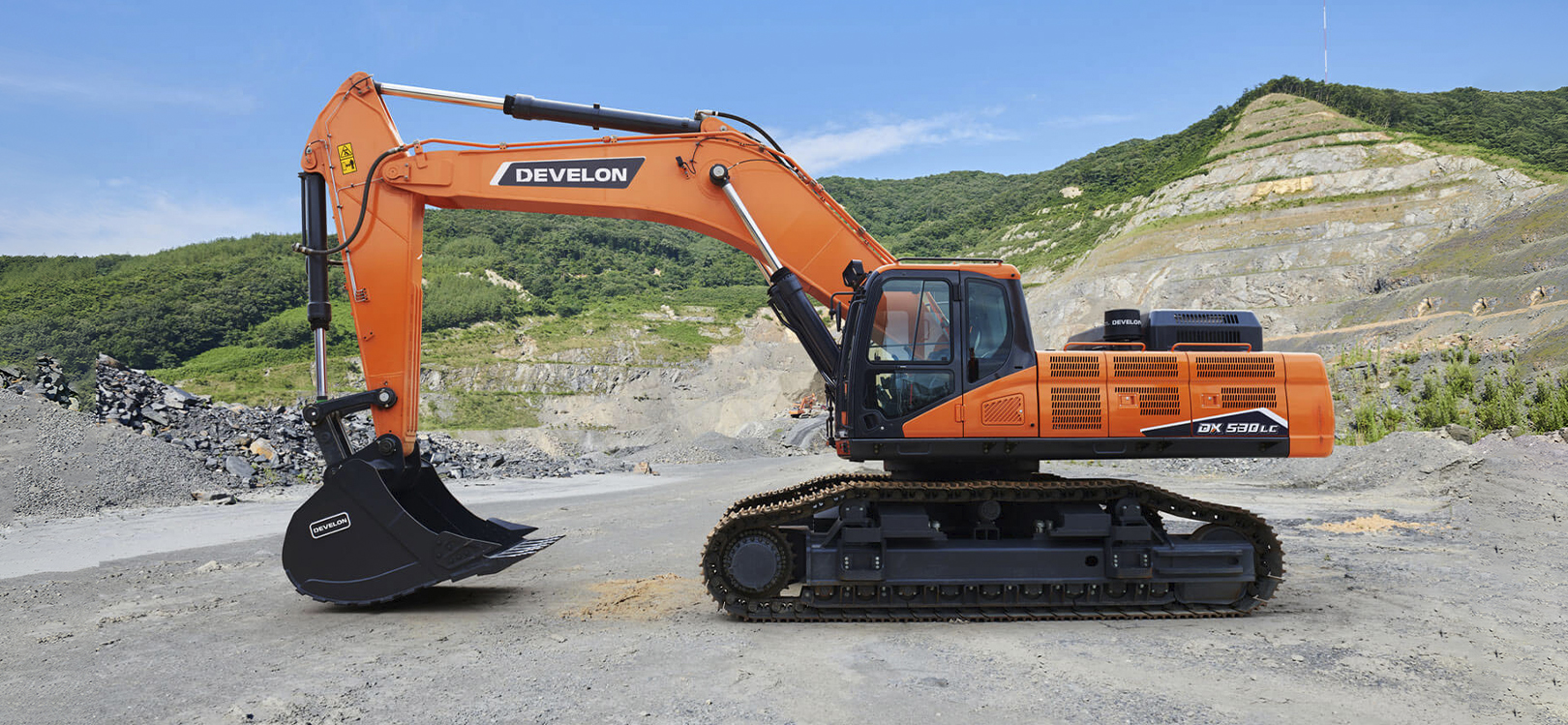

| CLASSIFICATION | UNIT | DX530LCA-7M |
|---|---|---|
| Operating weight | Ton | 53.5 |
| Bucket Capacity (SAE HEAPED) | m3 | 1.94~3.80 |
| Engine Rated Power (SAE j1349, net) | kW/rpm | 253/1,800 |
| Engine Model | - | DEVELON DX12 |
| Travel Speed | km/h | 5.5/3.1 |
| Max. Digging Reach | mm | 10,735 |
| Max. Digging Depth | mm | 6,755 |
| Max. Digging Height | mm | 9,630 |
| Overall Length | mm | 11,530 |
| Overall Width | mm | 3,577~4,100 |
| Overall Height | mm | 4,185 |
