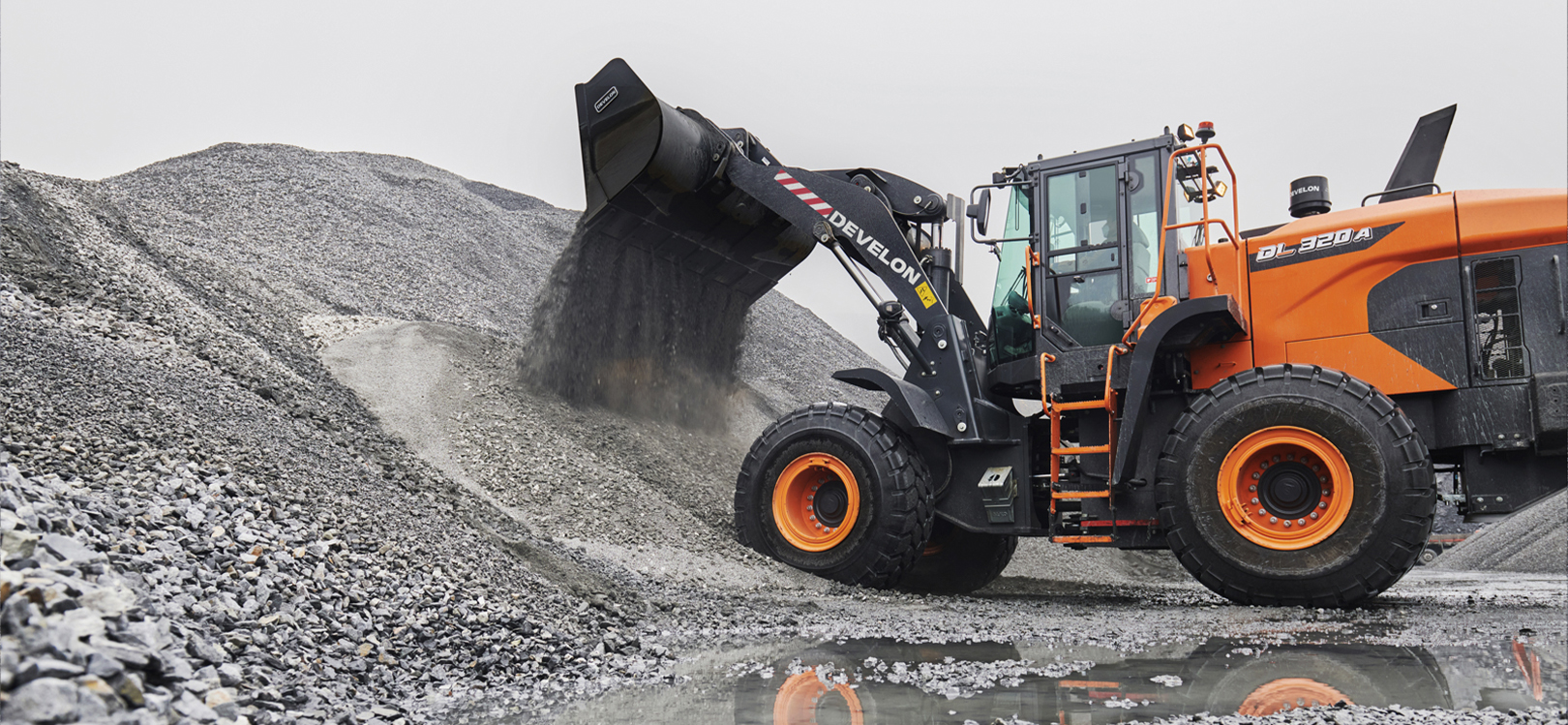

| CLASSIFICATION | UNIT | DL320A-7M |
|---|---|---|
| Operating weight | Ton | 18.6 |
| Bucket Capacity (SAE) | m3 | 3.0~6.0 |
| Engine Rated Power (SAE j1349, net) | kW/rpm | 156/2,100 |
| Engine Model | - | DE08TIS |
| Front Speed (Raise/Dump/Lower) | sec | 6.4/1.8/3.4 |
| Height at Bucket Pivot Point | mm | 4,170 |
| Breakout Force | kN | 169 |
| Turning Radius at Tire Center | mm | 5,917 |
| Tires | (l3) | 23.5R25 |
| Overall Length | mm | 8,447 |
| Overall Width | mm | 3,000 |
| Overall Height | mm | 3,511 |
| Static Tipping Load(straight) | kg | 14,903 |
