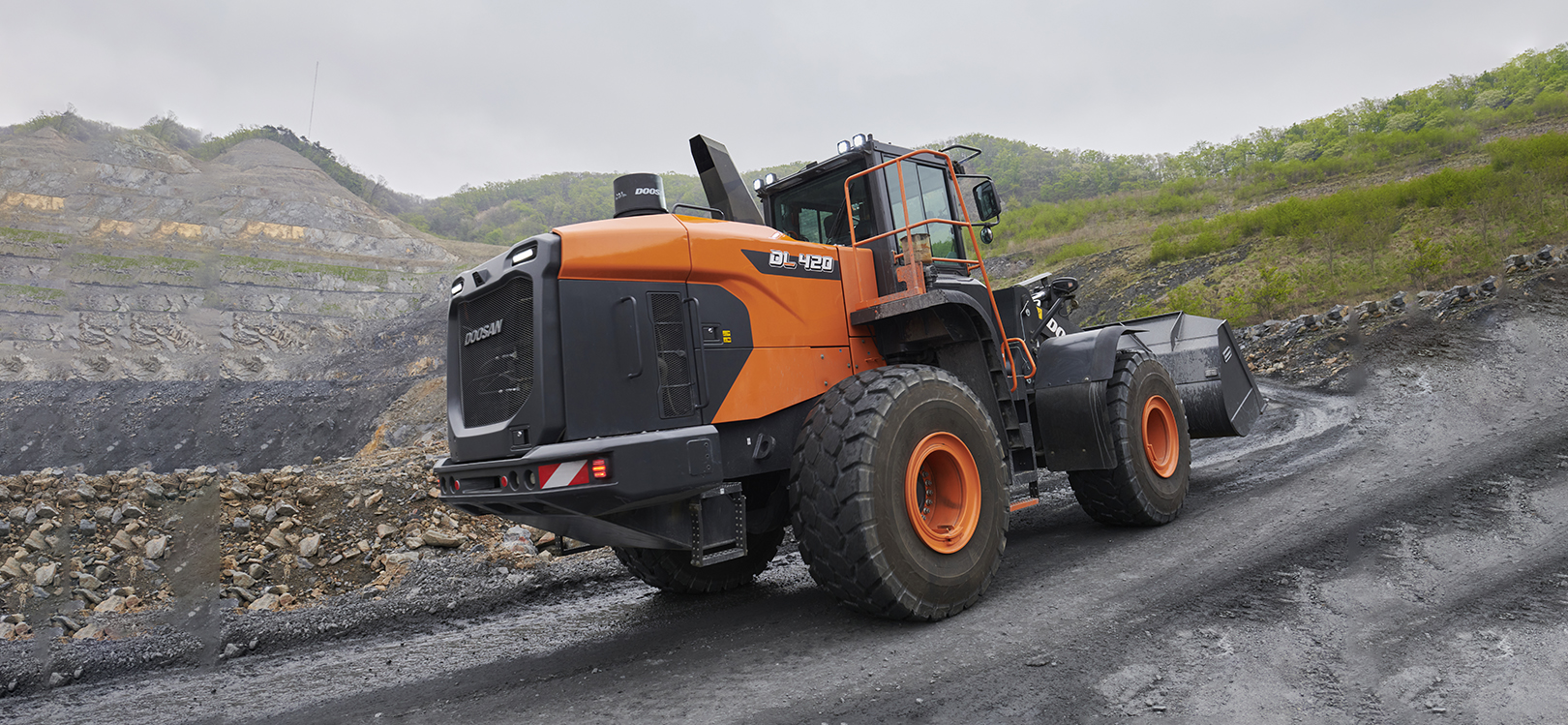

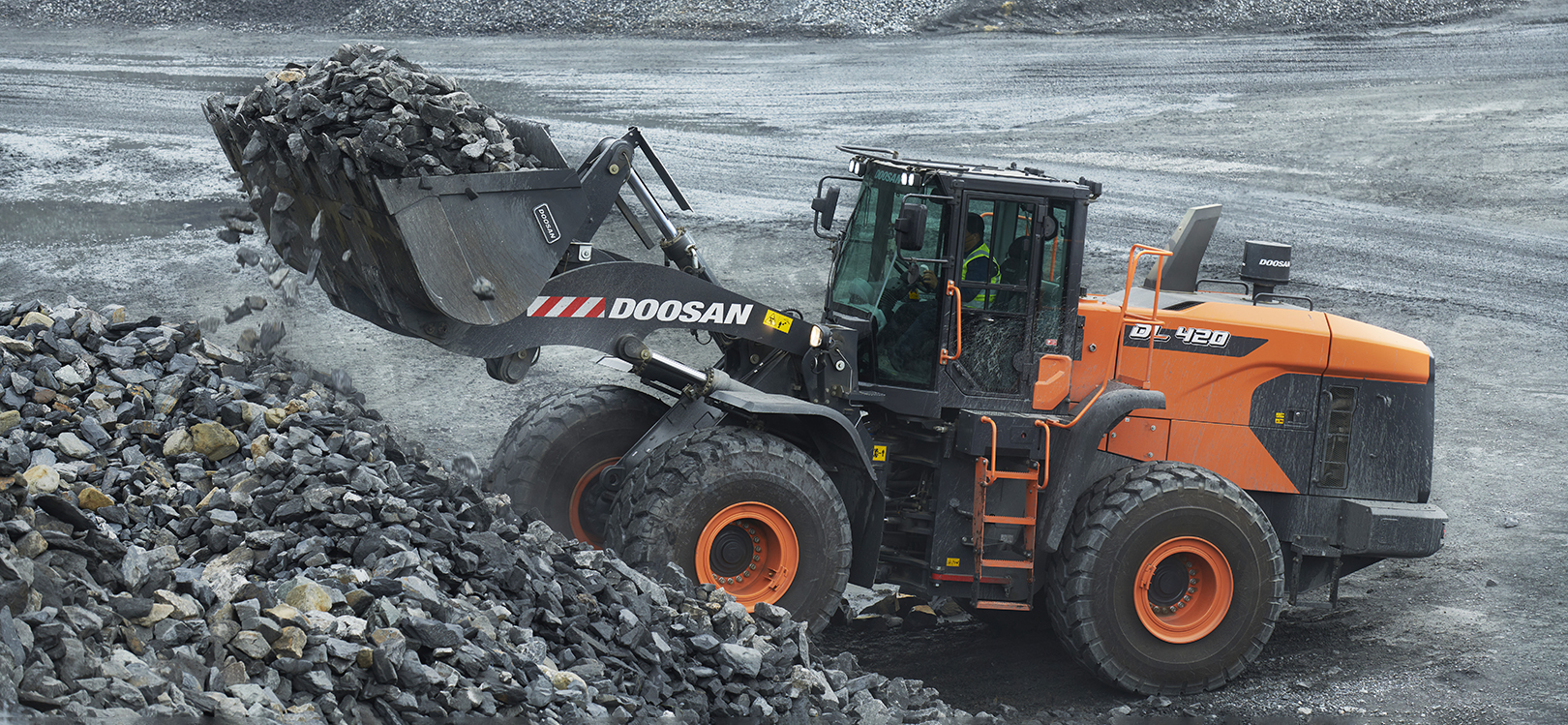

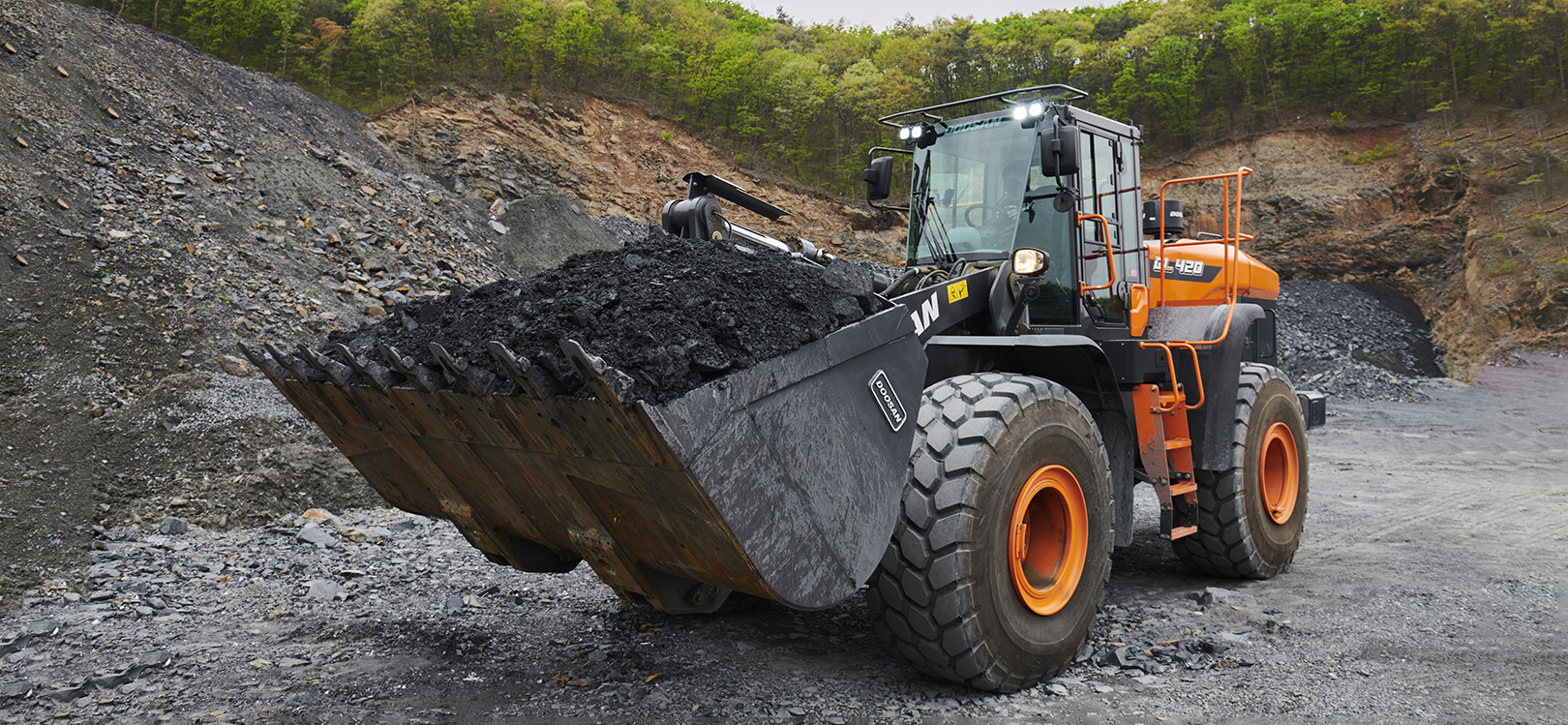

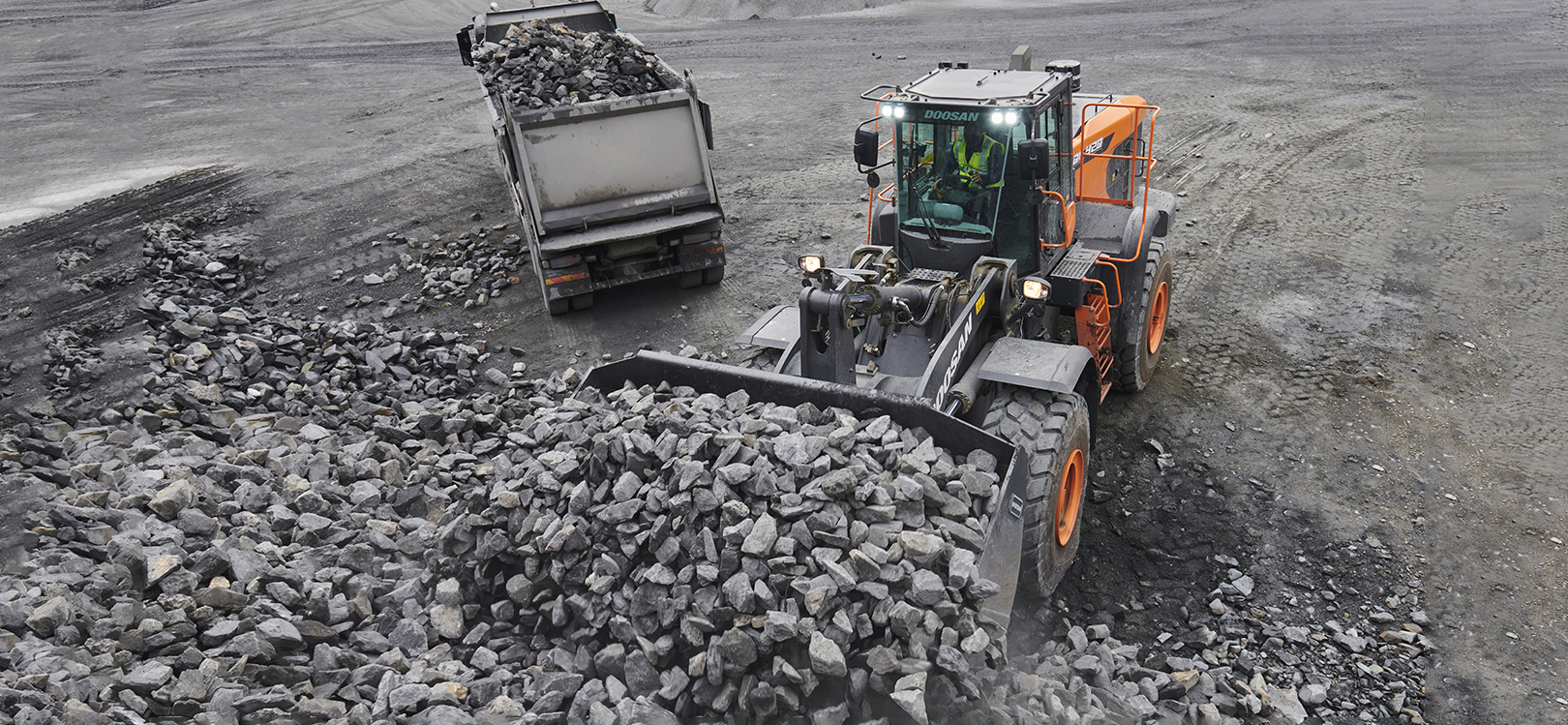

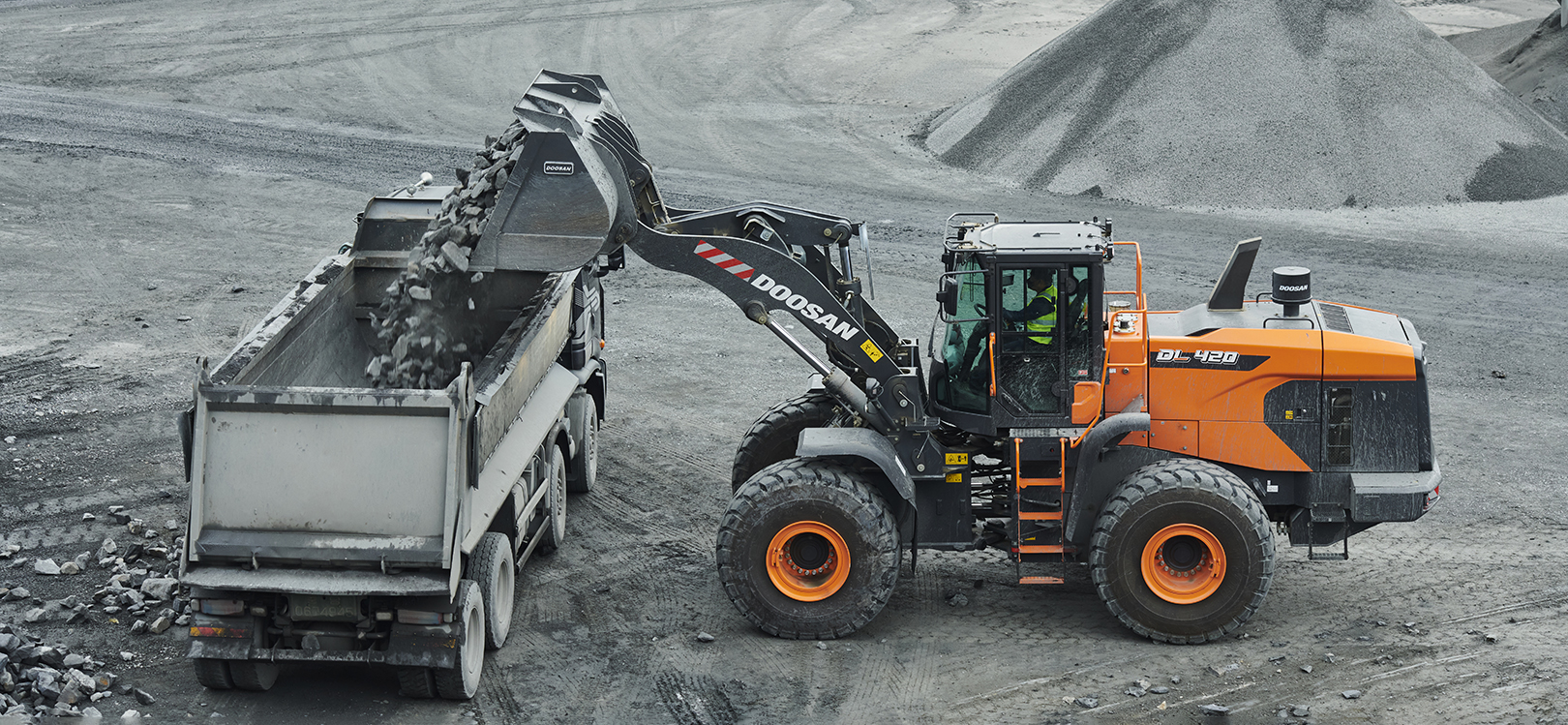

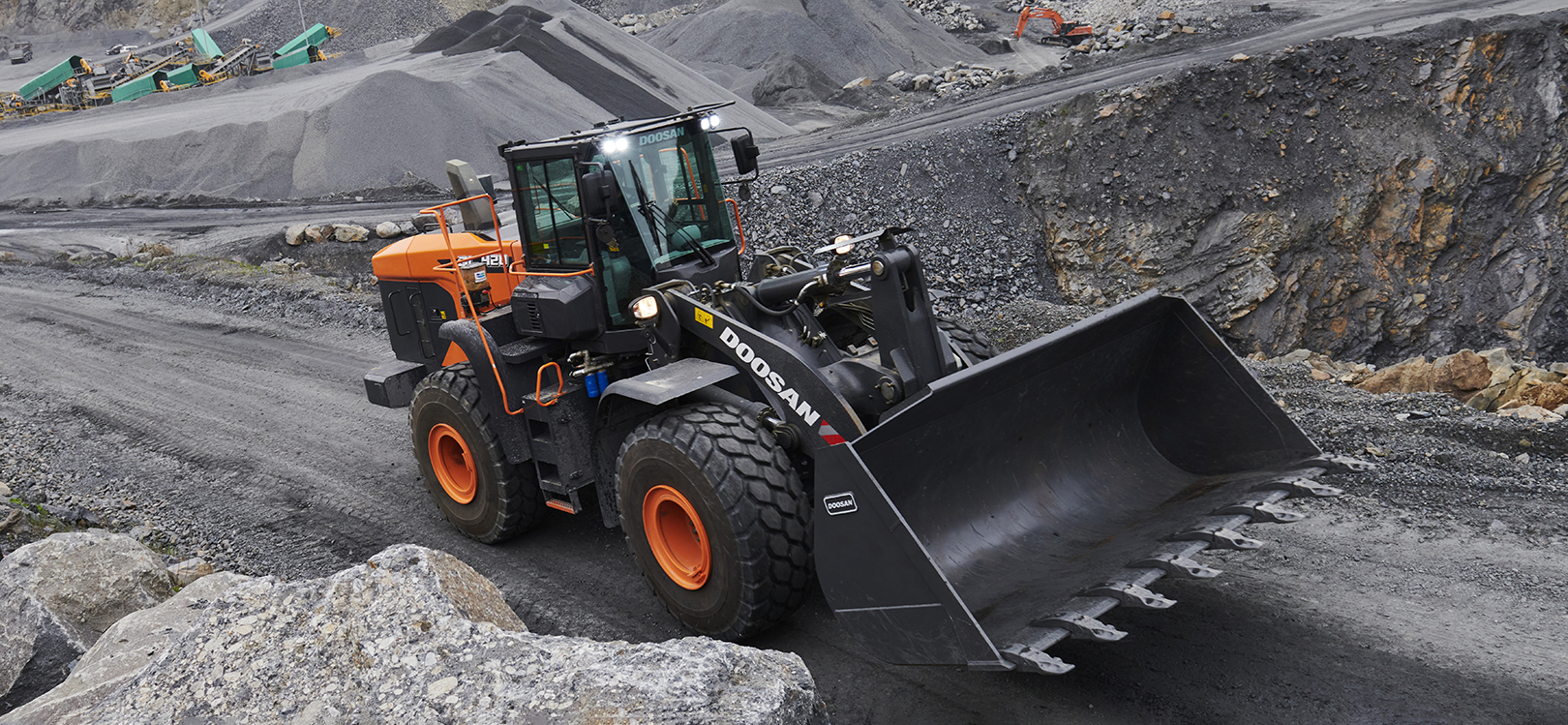

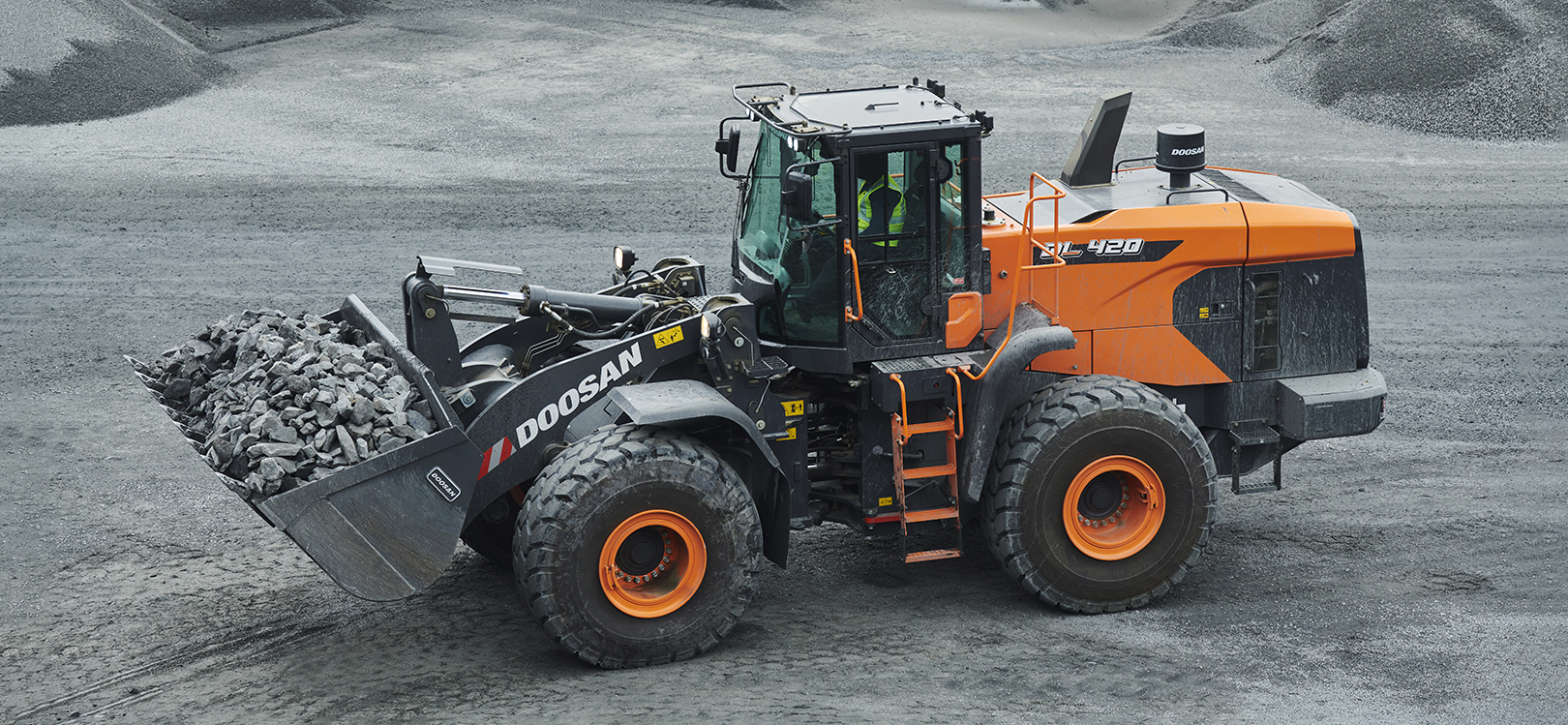

DEVELON DL420-7M

From the beginning, we had great concern for machine operators. People need to work in a well-designed and comfortable environment. The work area is spacious, with several places for storage. The checking and monitoring devices are comprehensive. There is an open view of the work area. For night work, operators are provided with powerful front and rear lighting.

Download Brochure
Previous Next
DEVELON DL420-7M
DEVELON DL420-7M

From the beginning, we had great concern for machine operators. People need to work in a well-designed and comfortable environment. The work area is spacious, with several places for storage. The checking and monitoring devices are comprehensive. There is an open view of the work area. For night work, operators are provided with powerful front and rear lighting.

CLASSIFICATION UNIT DL420-7M
Operating weight Ton 23.99
Bucket Capacity (SAE) m3 4.5
Engine Rated Power (SAE j1349, net) kW/rpm 210/2,100
Engine Model - Scania DC13 Stage V (6-cylinder )
Maximum travel speed (5th gear) kph 40
Height at Bucket Pivot Point mm 4.265
Breakout Force kN 171
Turning Radius at Tire Center mm 7.010
Tires (L3) 26.5 R25
Overall Length mm 8.926
Overall Width mm 3.200
Overall Height mm 3.660
Static Tipping Load(straight) kg 18.696


Download Brochure
