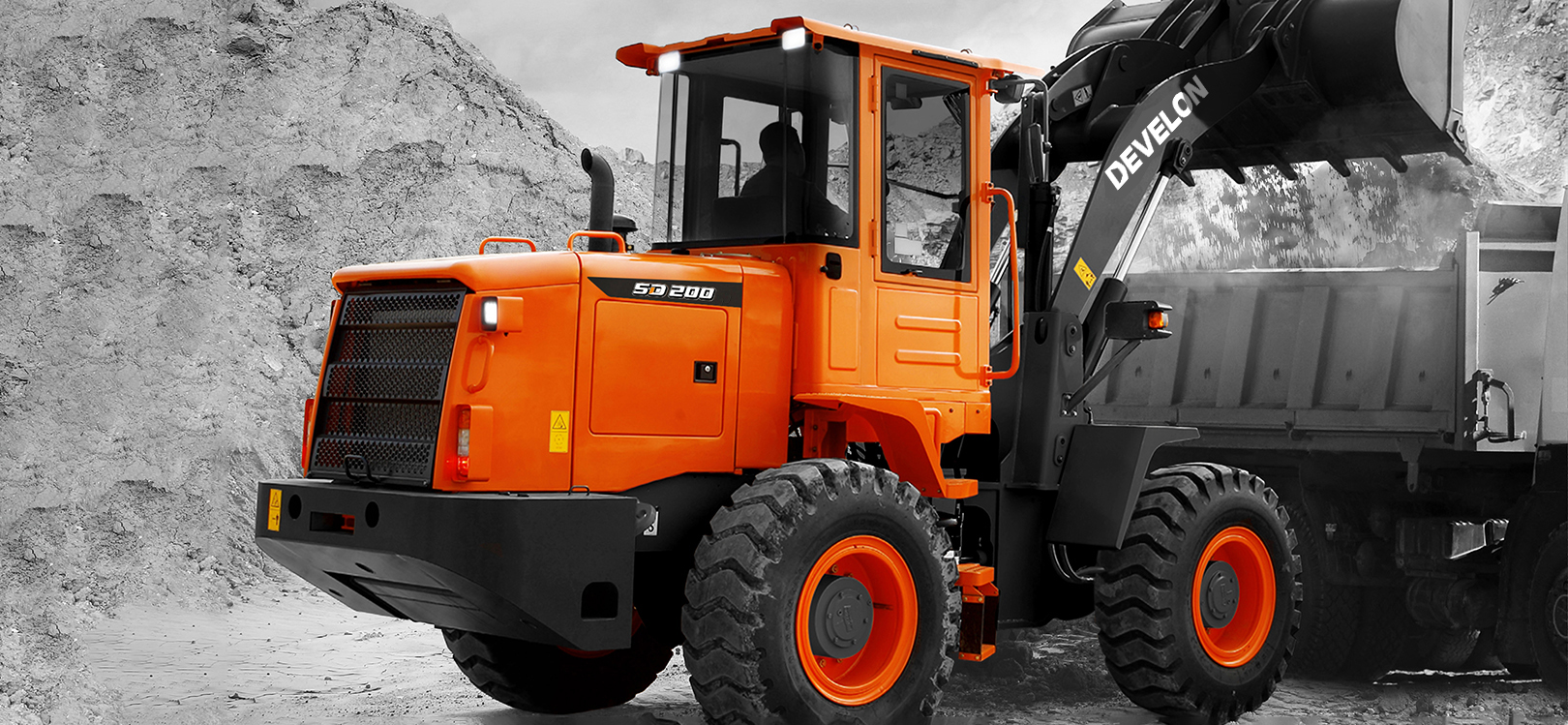

| CLASSIFICATION | UNIT | SD200 |
|---|---|---|
| Operating weight | Ton | 10.5 |
| Bucket Capacity (SAE) | m3 | 1.7 |
| Engine Max. Power (Gross) | kW(HP) / rpm | 92(125) / 2200 |
| Engine Max. Toque (Gross) | N.m / rpm | 500 / 1400 ~ 1500 75 / 1300 |
| Travel Speed Forward(1 / 2 / 3 / 4) | km / h | 0 ~ 36 |
| Dump Height at 45Deg | mm | 2814 |
| Breakout Force | kN | 9.2 |
| Turning Radius at Tire Center | mm | 6,037 |
| Dump Reach at 45Deg | mm | 1195.5 |
| Tires | - | 17.5-25-12PR |
| Overall Length | mm | 6900 |
| Overall Width | mm | 2496 |
| Overall Height | mm | 2496 |
