Breaker

❮ ❯

Breaker

Breaker

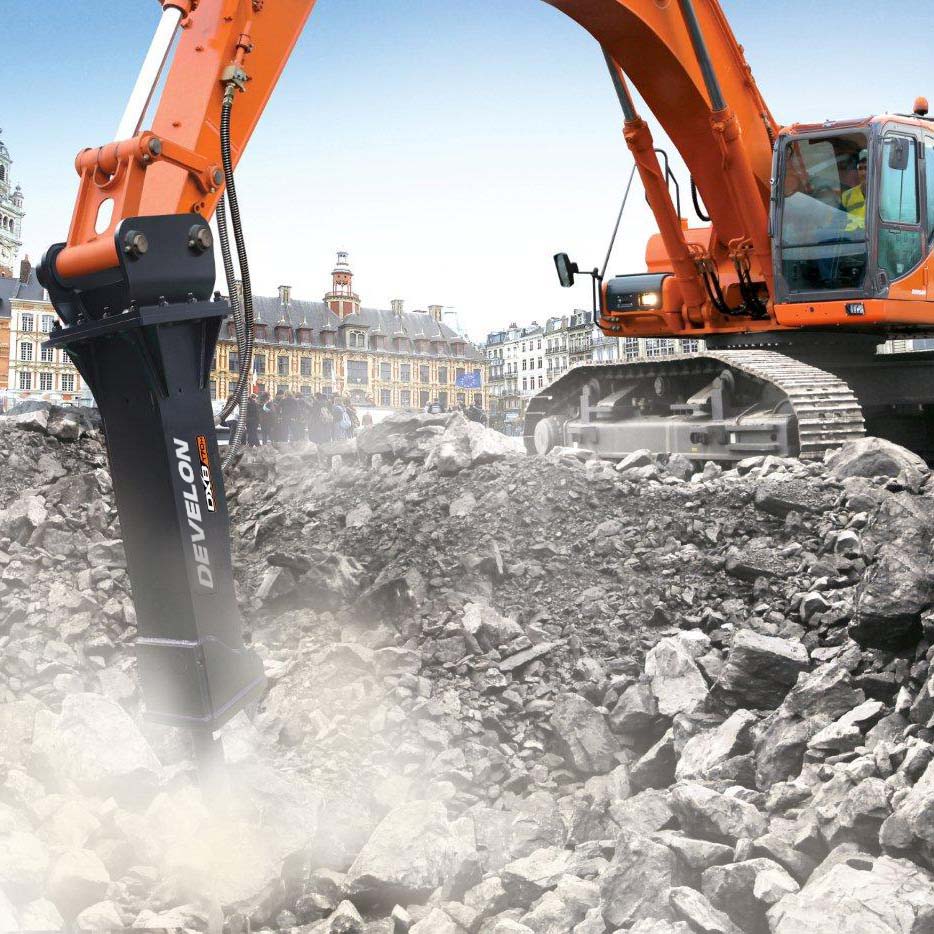

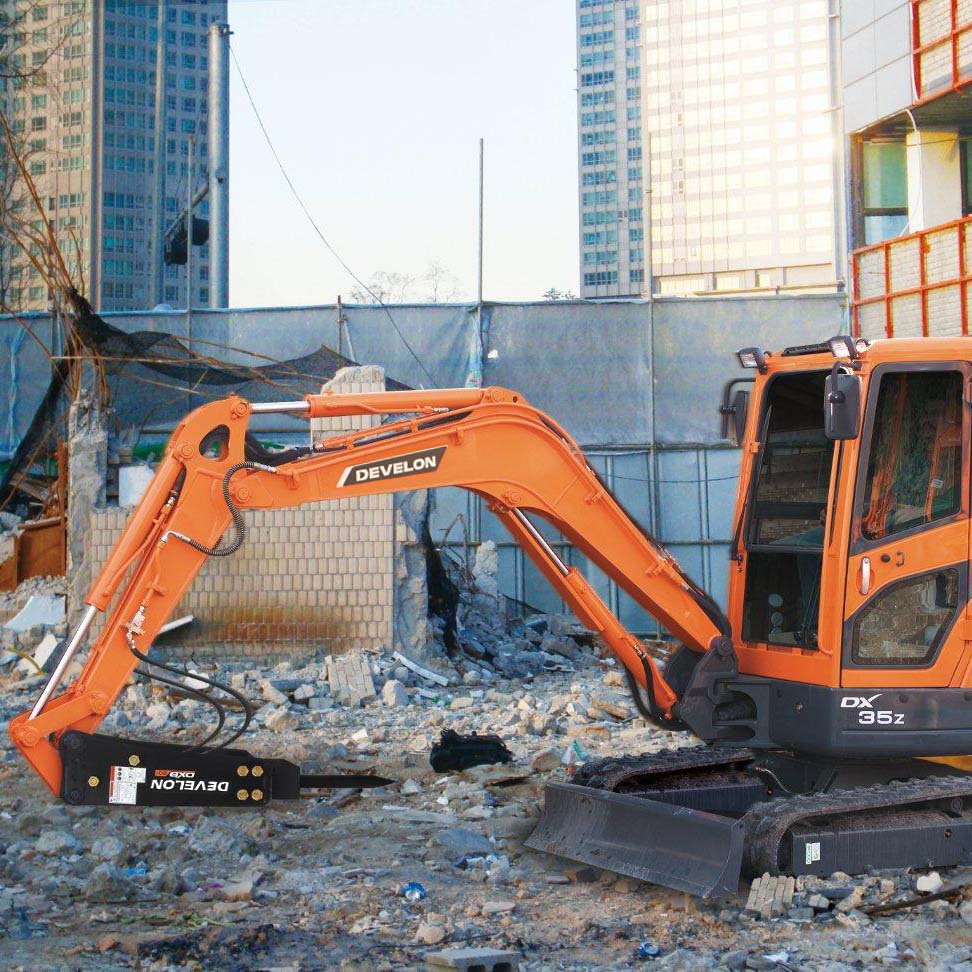

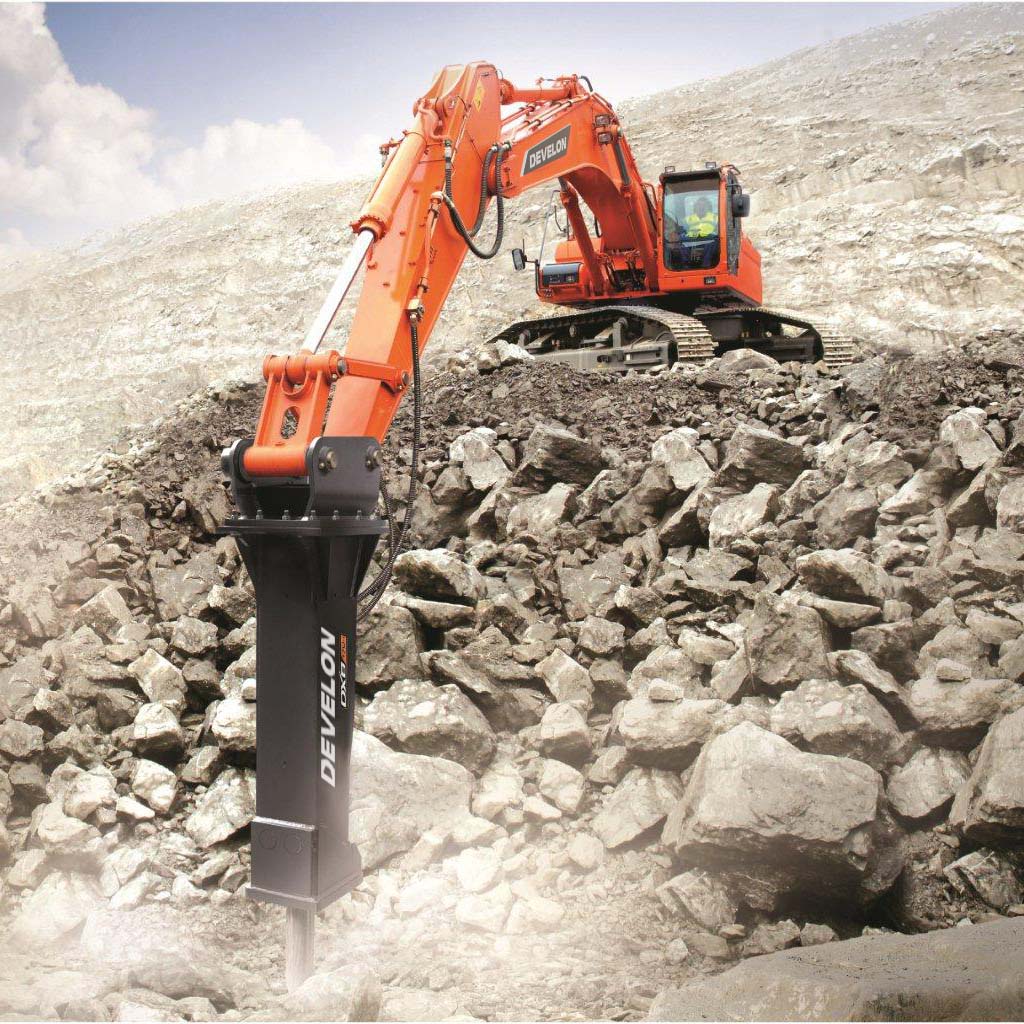

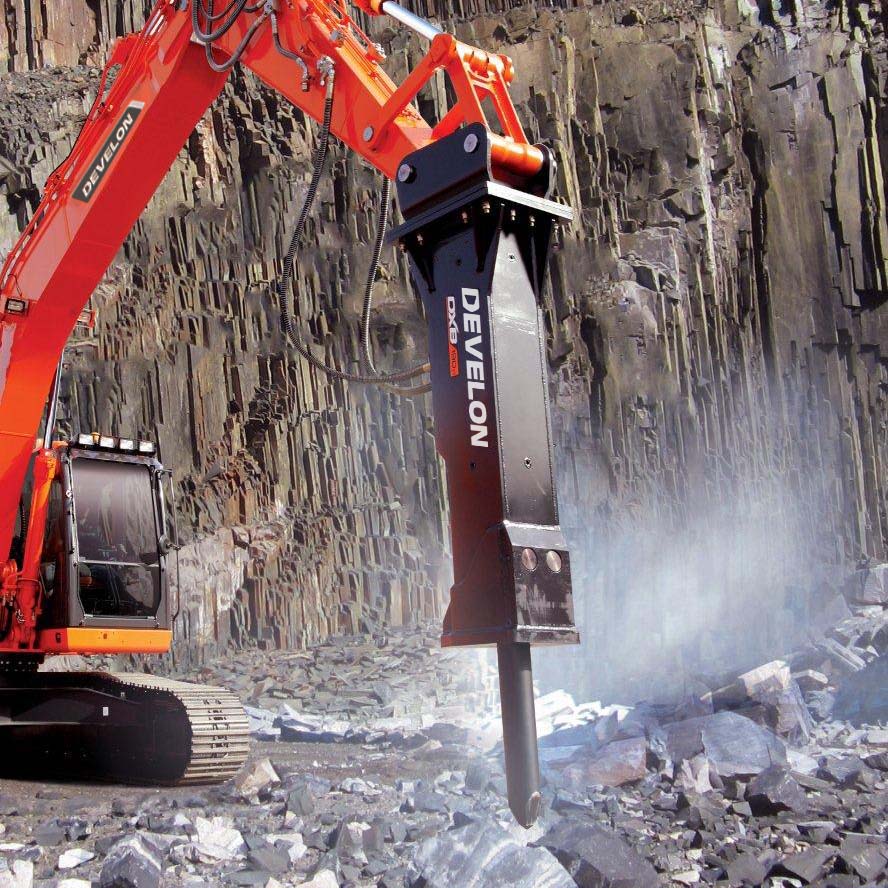

HB series Breaker is designed for mainly focusing on breaking job. Develon’s focus is to optimize impact power, enhance durability, satisfy customer convenience and maintain easily in order to be faithful to the original function of hydraulic breaker.

Specifications

Specifications

Model			DXB35	DXB45	DXB90	DXB160	DXB170	DXB190
Carrier weight		t	4-6	6~8	12~16	18~16	18~28	26~32
	T	kg	330	500	940	1,652	1,680	1,850
	H	kg	340	490	1,000	1,742	1,620	1,750
Operating weight	BH	kg	-	-	-	-	-	-
	SL	kg	-	-	-	-	-	-
Tool diameter		mm	70	77	107	135	137	142
Operating pressure		bar	170	170	180	160~180	180	180
Flow	Min	ℓ/min	35	45	80	100	100	120
	Max	ℓ/min	65	90	140	150	150	180
Frequency	High BPM	blow s/min	1,000	1,000	820	330~500	600	540
	Low BPM	blow s/min	-	-	-	220~360	-	360
Energy/blow	High BPM	j	660	1,000	2,100	2,200	3,400	3,000
	Low BPM	j	660	1,000	2,100	3,100	3,400	4,000

Carrier Compatibility

Carrier Compatibility

DXB35	DXB45	DXB90	DXB160	DXB170	DXB190	DXB230	DXB260	DXB420	DXB500	DXB700
DX53W	DX80R	DX140LC/W	4DX180LC6	DX180LC	DX300LCA	DX300LCA	DX340LCA	DX420LCA	DX480LCA	DX700LC
DX55/W	S75-V	DX160W	DX190W	DX190W	S300LC-V	S300LC-V	S340LC-V	S420LC-V	DX500LCA
DX60R		S140LC/W-V	DX210W	DX210W		DX300LCA			DX520LC
S55/W-V		S160W-V	DX220A	DX220A		S340LC-V			S470LC-V
				DX225LCA	DX225LCA				DX480LCA
				DX225LC	DX225LC
				S180W-V	S180W-V
				S210W-V	S210W-V
				S225LC-V	S225LC-V
				S225NLC-V	S225NLC-V
				S255LC-V	S255LC-V
