Clamshell Bucket
Clamshell Bucket

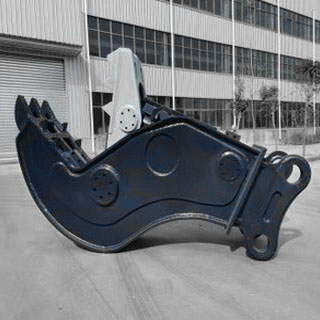

DEVELON Fixed Pulverizers are designed for both primary demolition work and secondary concrete reduction. For secondary demolition, it is ideal for breaking out concrete from fixed structure, pulverizing concrete, separating different materials for recycling, and cutting reinforced rods and small steel profile.

Specifications

Specifications

Model FP14 FP22 FP25 FP34
Carrier Weight t 13~20 16~25 20~28 28~36
Operating Weight kg 1,100 1,375 1,890 2,745
Overall Length mm 1,656 1,985 2,206 2,388
Jaw width (Fixed/Moving Jaw) mm 384/330 483/350 470/346 532/370
Max Jaw opening mm 680 732 889 1,061
Max. Operating Pressure bar 350 350 350 350
Crushing Force (Tip) t 51 54 64 78
Cutter Blade Length mm 240 240 360 360
Required oil flow lpm 100~180 150~250 150~250 200~3,000
- - - 0 0 0
- - - - - 0

Download Brochure
