Plate Compactor

❮ ❯

Plate Compactor

Plate Compactor

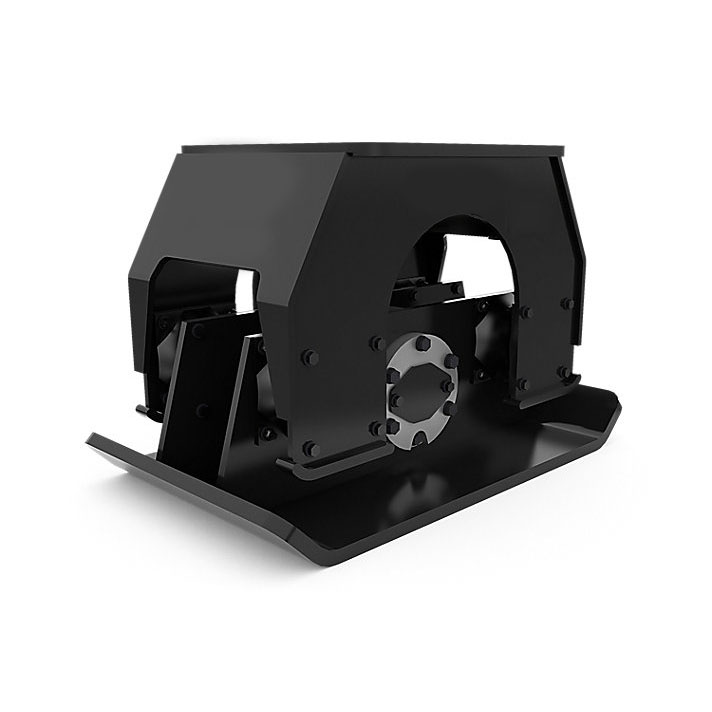

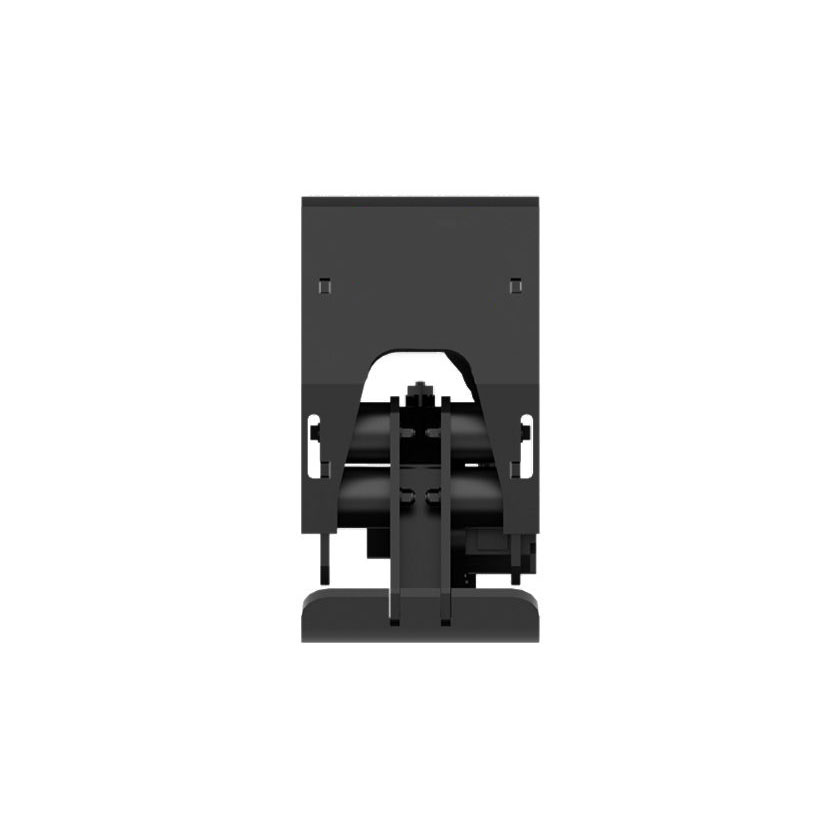

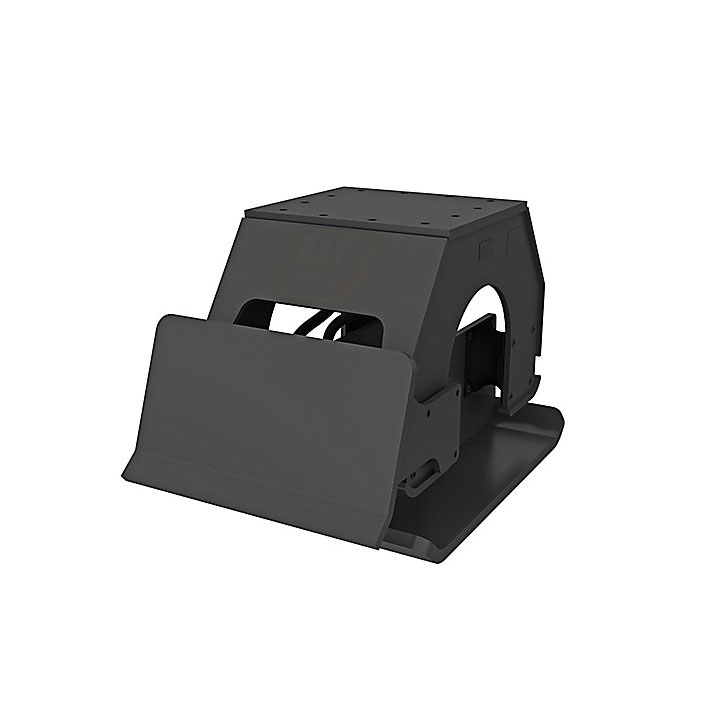

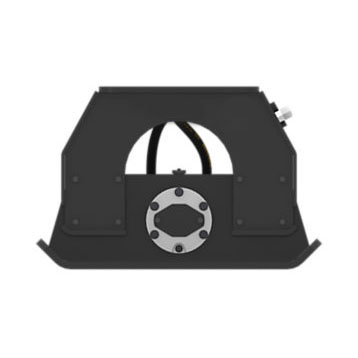

Develon Compactors are designed for soil compaction in trenches, foundations, or slope applications. Its heavy-duty design offers a variety of application such as piling, compacting and etc.

Specifications

Model		OG14	OG22	OG30	OG34	OG42	OG50
Carrier Weight	t	14	18~25	30	34	42	48~52
Operating weight	kg	1,170	1,300	1,700	2,000	2,080	2,500
Capacity	m3	0.3	0.5	0.6	0.72	0.8	0.97
Jaw opened height (A)	mm	1,370	1,840	1,980	2,100	2,100	2,200
Jaw closed height (B)	mm	1,490	2,090	2,200	2,300	2,350	2,460
Jaw opened inner length (C)	mm	1,630	1,880	2,000	2,300	2,250	2,480
Jaw opened outer length (D)	mm	1,890	2,150	2,290	2,615	2,600	2,770
Jaw closed length (E)	mm	1,360	1,450	1,500	1,730	1,750	1,810
Motor Required oil flow	lpm	16	16	27	26	26	26
Cylinder Operating pressure	bar	280	280	280	280	280	280
Cylinder Cylinder close oil flow	lpm	149	156	196	201	201	262

Download Brochure
